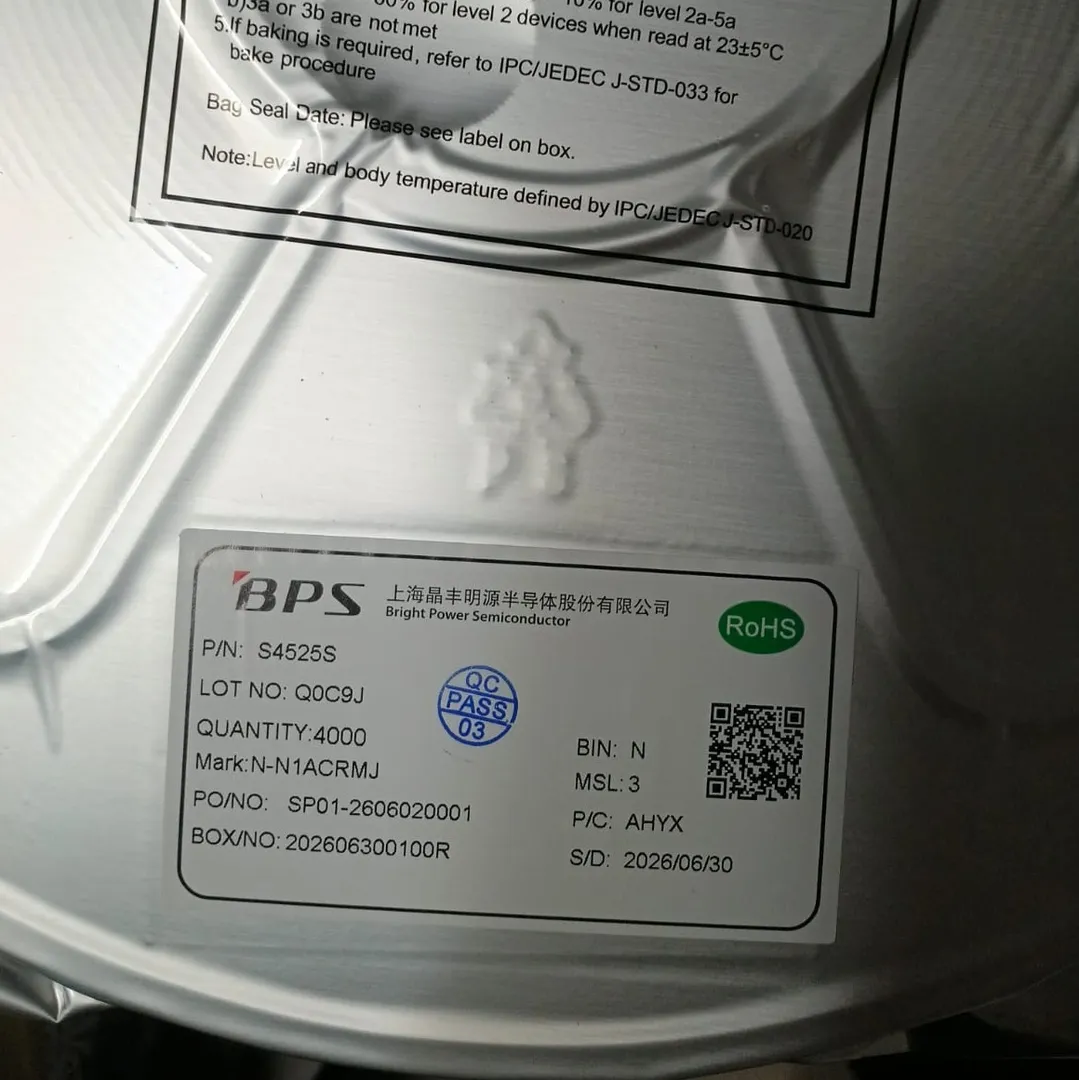

S4525S CCT Controller – Now in Stock at Regency Semiconductors
We are pleased to announce the availability of the S4525S CCT controller from BPSemi. This highly integrated IC is designed for color temperature tuning applications, offering a compact and cost-effective solution for LED lighting systems.
What is the S4525S?
The S4525S is a CCT (Correlated Color Temperature) controller with two integrated 400V thyristors and high-voltage JFET power supply circuits. It eliminates the need for a VCC capacitor and startup resistor, significantly reducing system cost and size. The device utilises stable ON-OFF detection technology to ensure state consistency in multi-module applications.
It is compatible with Flyback, Buck, Buck-Boost and other LED driving topologies, making it a versatile choice for a wide range of lighting designs.
Key Features
- Three-state loop: L1 → L2 → (L1+L2)/2
- High integration & clean periphery – eliminates VCC capacitor and startup resistor
- Integrates two 400V thyristors
- Built-in clock timing reset for excellent consistency
- Built-in voltage limiting circuit – suitable for wide output power range
- Compatible with isolated, non-isolated, and high PF switching power supply applications
Key Specifications
- Part Number: S4525S
- Package: SOP8
- HV Pin Voltage: up to 500V
- Operating Current (HV): 0.5mA (typical)
- Maximum Current Support: 280mA
- State Hold Time: ~11s (at 25°C)
- CLK Threshold Voltage: 18V
- Operating Junction Temperature: -40°C to +125°C
- Storage Temperature: -40°C to +150°C
Applications
- CCT (Color Temperature Tuning) – LED lighting systems requiring adjustable white light
Why Buy from Regency Semiconductors?
- Genuine Components – Authentic BPSemi parts with full traceability
- Competitive Pricing – Volume discounts available
- Ready Stock – Immediate dispatch
- Technical Support – Our team assists with your design needs
Contact us today for pricing, samples, or bulk inquiries!
+91-8591695392
sales1@regencysemiconductors.com
www.regencysemiconductors.com
Note: Specifications are subject to change without prior notice. Please refer to the official datasheet for complete technical details.
