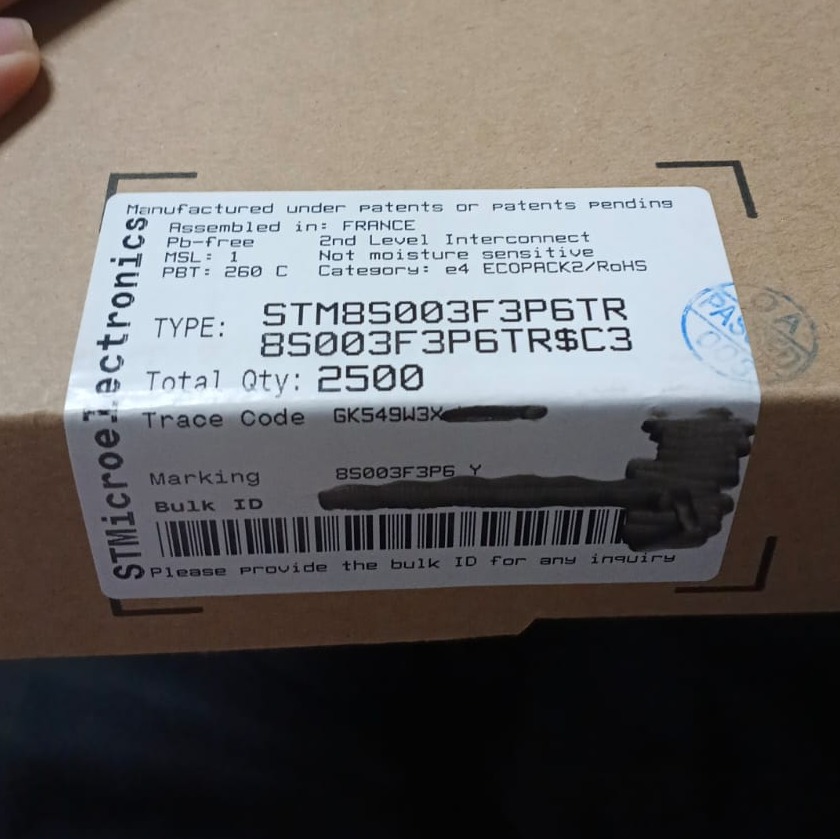

🔵 STM8S003F3P6TR 8-bit Microcontroller – Now in Stock

We are pleased to announce the availability of the STM8S003F3P6TR 8-bit microcontroller from STMicroelectronics. This value-line MCU offers an excellent balance of performance, robustness, and cost-effectiveness, making it ideal for a wide range of embedded applications.

Regency Semiconductors is an authorized distributor of STMicroelectronics, ensuring you receive 100% genuine, factory-original components with full traceability and reliability.

🔵 What is the STM8S003F3P6TR?

The STM8S003F3P6TR is an 8-bit microcontroller from STMicroelectronics' STM8S value line. It features a 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline, 8 KB Flash program memory, 1 KB RAM, and 128 bytes of true data EEPROM. This MCU delivers exceptional performance with low power consumption, making it suitable for cost-sensitive and space-constrained designs.

With up to 16 GPIOs, 10-bit ADC, multiple timers, and UART, SPI, and I²C communication interfaces, the STM8S003F3P6TR is a versatile solution for industrial, consumer, and automotive applications.

✨ Why Choose the STM8S003F3P6TR?

• 🎯 High Performance – 16 MHz STM8 core with Harvard architecture and 3-stage pipeline for efficient execution
• 💾 Ample Memory – 8 KB Flash, 1 KB RAM, and 128 bytes of true data EEPROM with 100k write/erase cycles
• 🔌 Rich Peripherals – 10-bit ADC, UART, SPI, I²C, advanced control timer, general-purpose timers, and watchdog timers
• ⚡ Low Power Consumption – Multiple power-saving modes including wait, active-halt, and halt modes
• 🛡️ Robust Design – Highly robust I/Os immune to current injection, clock security system, and independent watchdogs
• 📦 Compact Package – Available in TSSOP20 and UFQFPN20 packages for space-constrained designs
• 🔄 Easy Development – Supported by ST's free development tools including STVD IDE and STVP programming software
• 🛠️ Wide Operating Voltage – 2.95V to 5.5V supply voltage for flexible design

🔊 Applications

The STM8S003F3P6TR is ideal for:

• Industrial Control – Motor control, sensors, and automation
• Consumer Electronics – Appliances, remote controls, and smart devices
• Automotive – Interior lighting, body electronics, and auxiliary systems
• LED Lighting – Smart lighting controllers and drivers
• IoT Devices – Low-power connected devices
• Power Supplies – SMPS control and monitoring

📦 Key Specifications

• Part Number: STM8S003F3P6TR
• Brand: STMicroelectronics
• Core: 16 MHz STM8 (Harvard architecture, 3-stage pipeline)
• Flash Memory: 8 KB
• RAM: 1 KB
• Data EEPROM: 128 bytes (100k write/erase cycles)
• Supply Voltage: 2.95V to 5.5V
• ADC: 10-bit, up to 5 channels
• Timers: 16-bit advanced control timer, 16-bit general-purpose timer, 8-bit basic timer
• Communication Interfaces: UART, SPI, I²C
• GPIOs: Up to 16
• Package: TSSOP20 (6.5 × 4.4 mm)
• Operating Temperature: -40°C to +85°C

🛡️ Key Features

• Clock Security System (CSS) – Automatically switches to internal RC if external clock fails
• Watchdog Timers – Independent and window watchdogs for maximum security
• Single Wire Interface Module (SWIM) – Fast on-chip programming and non-intrusive debugging
• Nested Interrupt Controller – Up to 27 external interrupts on 6 vectors
• Low Power Modes – Wait, active-halt, and halt modes for power-sensitive applications
• True Data EEPROM – 128 bytes with 100k write/erase cycles

🏆 Why Regency Semiconductors?

• Competitive Pricing – Volume discounts available for bulk orders
• Ready Stock – Immediate dispatch from our warehouse
• Technical Support – Our team is here to assist with your design needs

📩 Contact us today for pricing, samples, or bulk inquiries!

📞 +91-8591695392

📧 sales1@regencysemiconductors.com

🌐 www.regencysemiconductors.com

Note: Specifications are subject to change without prior notice. Please refer to the official datasheet for complete technical details.
